Description

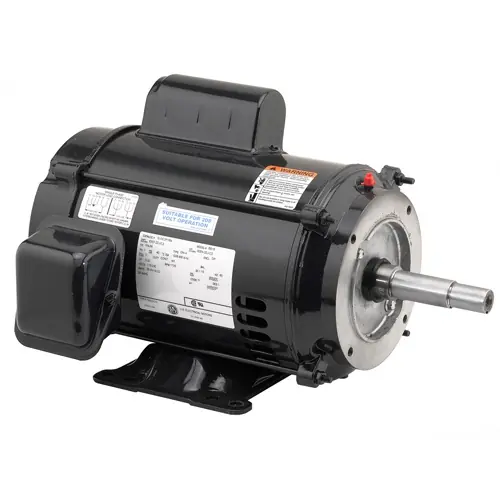

Nidec DJ5C1K18P – The special application close-coupled pump is designed for specific requirements in centrifugal pump applications. It features a single-phase open drip-proof (ODP) design. The motor has a class F insulation system for reliable operation. With a rolled steel frame, it provides sturdy construction. The oversized ball bearings with locked shaft end construction ensure smooth and efficient performance. The motor is reversible, allowing for flexible installation options. It is assembled in the F1 position and includes a shaft slinger on the pulley end for added protection. Lifting provisions are available for 180 frame and larger motors, making installation easier. The motor is equipped with a “JM” shaft for mechanical seal applications and a “JP” shaft for packing seal applications, providing versatility to meet different sealing requirements.
